الجودة هي كل شيء
| مكان المنشأ: | الصين |
|---|---|
| اسم العلامة التجارية: | Linsheng Auto II MaxM |
| رقم الموديل: | LS-JLC-01 |
| الحد الأدنى لكمية: | قطعة واحدة |
| الأسعار: | 159USD~299USD/PC |
| تفاصيل التغليف: | كرتون |
| وقت التسليم: | 2 أسابيع |
| شروط الدفع: | L/C ، T/T ، PayPal |
| القدرة على العرض: | 1000pcs/شهر |
| اسم المنتج: | عمود الرفع الكهربائي | جهد العمل: | تيار مستمر 12 فولت، 24 فولت |
|---|---|---|---|
| الأعلى. حمولة: | 2000n | سكتة دماغية: | قابل للتخصيص |
| الحد الأقصى مفتاح: | بنيت | تصنيف IP: | IP20 |
| دورة العمل: | 10% (دقيقتان للتشغيل/18 دقيقة للإيقاف) | لون: | رمادي ، أسود |
| سرعة: | 8 مم / ثانية - 25 مم / ثانية | درجة حرارة العمل: | -15 درجة مئوية - +45 درجة مئوية |
| إخراج الإشارة (اختياري): | أجهزة استشعار القاعة |

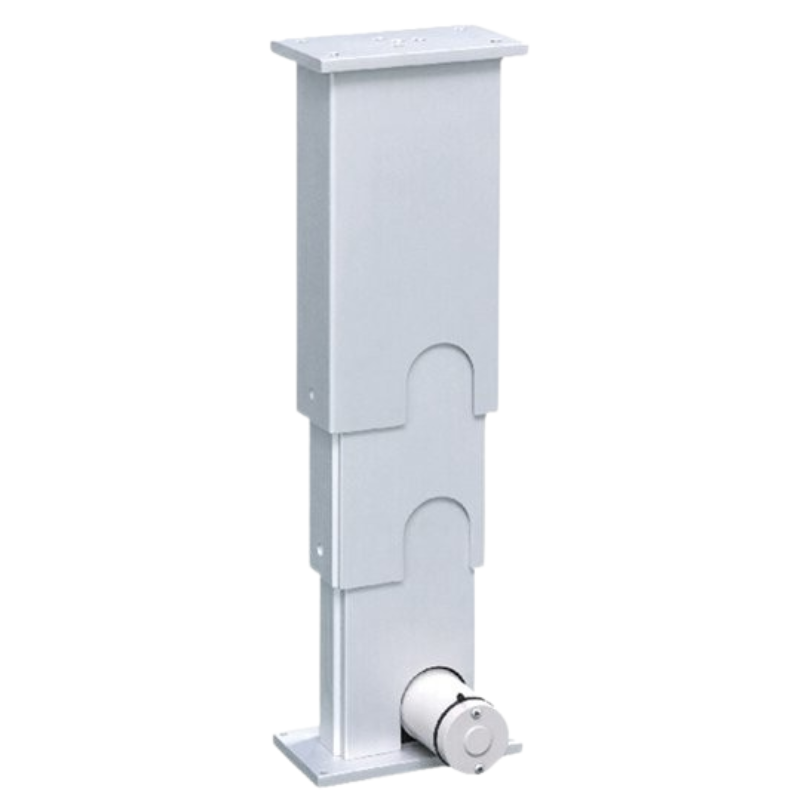

Electric 3-Stage Lifting Column 200KG Load Telescopic Actuator for Adjustable Platform 24V DC
The DC electric lifting column is a compact and reliable vertical lifting solution designed for smooth, stable, and precise height adjustment in various industrial and furniture applications. Powered by a 12V or 24V DC motor, it delivers strong performance with a load capacity of up to 2000N, making it ideal for adjustable tables, medical equipment, machinery, and automation systems.
Features:
Customizable stroke length to meet various height adjustment needs
Maximum 200 kg thrust for light industrial and automation applications
Durable construction with high-quality materials
Stable performance and reliable operation
Specifications:
| Model | LS-JLC-01 |
| Load force | 2000N |
| Working voltage | DC12V / 24V |
| Stroke | Customize |
| Tube no. | 3 stage |
| Speed | 8mm/s - 25mm/s |
| Limit switches | Built in |
| IP rating | IP20 |
| Color | Grey, Black |
| Duty cycle | 10% (2 min. ON/ 18 min. OFF) |

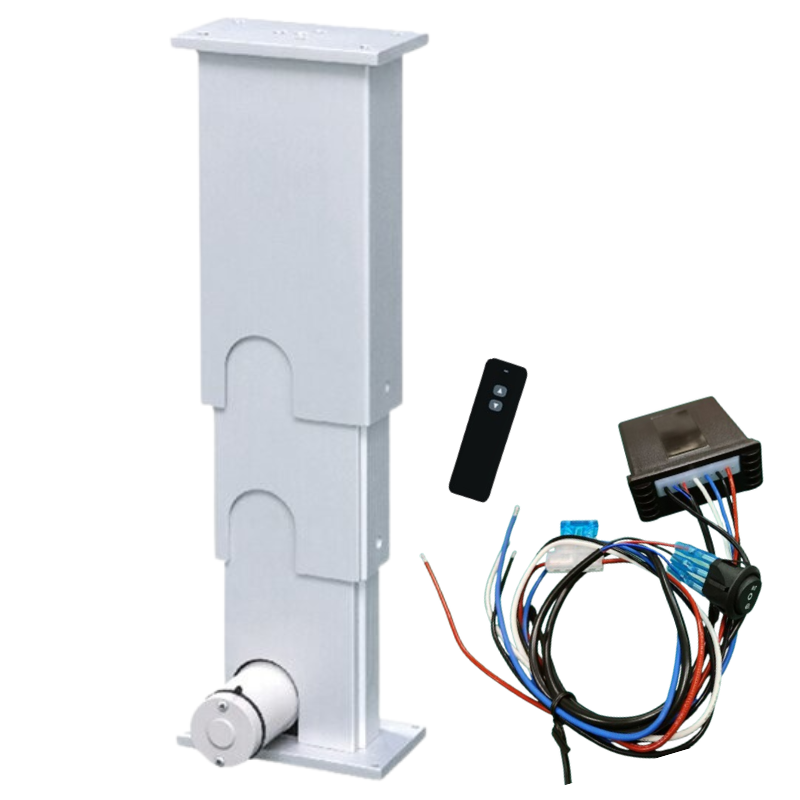

Single Lifting Column Remote Control System:
Model : LS-RSK-1
Voltage: 12V / 24VDC
Max. current: 15A
Operation: Wired switch and Wireless remote control
IP rating: IP66
Frequency: 433.92Mhz
Remote range: 30 meters
Feature: Overcurrent safety protection
Remote option: Momentary and non-momentary
Function: Control one actuator / lifting column motion (UP/DOWN/STOP)
